2022 CABRINHA MANTIS WING FOIL

The original Mantis set a benchmark with regards to leading edge rigidity, and this year it has been even further refined, culminating in an ultra-rigid frame and also refined profile. Combined with a pretensioned canopy, this gives a crisp high performing product that maintains its performance through a wider range of conditions. Refined sizing and wingspans allow for more progressive power in the small sizes, while the wingtip shape adjustment helps deflect water during start up, and also allows for deeper profiles to aid in power delivery. The Mantis V2 showcases Cabrinha’s forward driving wing program and puts the ultimate in technology and efficiency into your hands to maximize water time and performance.

Leading Edge Inflatable Dihedral with a medium aspect ratio outline, rigid frame and lightweight design.

Features

• NEW increased dihedral: Balanced dihedral for power to stability ratio
• NEW revised twist for improved range
• High Center-LE diameter and progressive taper, for improved stiffness & canopy tension, with upwind efficiency
• Controllable power in a wide range of wind conditions
• HD large diameter closing seam construction
• Balanced dihedral for power-to-stability ratio
• High rigidity single strut for low weight and predictable depower
• Nano Tech Ripstop
• High Tenacity Dacron LE
• Sprint Inflate Valve
• Extremely safe operation
• Kevlar wing tip reinforcement
• Safety wrist leash included

The H-SERIES High Aspect foil range is the latest offering from Cabrinha’s state of the art foil design program in collaboration with Keahi De Aboitiz.

The H-series wings represent the pinnacle in hydrodynamic efficiency & performance while seamlessly integrates into the Cab Fusion Foil system. The high aspect shape allows for effortless pumping, insane glide while retaining an 'easy-to-steer' feeling.

Whether you use them for wing, kite or foil-surfing, rise to the occasion with all of the H-series’ cutting edge features and be prepared for the endless ride…

WING FEATURES

• Loose and agile feel for superior maneuverability
• Ultra lean profile for wide speed range
• Integrated fuselage with tapered fit
• Incredible torsional stiffness
• Full prepreg carbon construction
• PMI core for superior strength to weight ratio
• Moderate anhedral for a more efficient lift platform

TECH SPECS

• H650- 650cm², WS 720, AR 7.9, Chord 125mm
• H800- 800cm², WS 900, AR 9.9, Chord 125mm
• H1000- 1000cm², WS 900, AR 8.1, Chord 155mm
• H1200- 1200cm², WS 900, AR 6.7, Chord 185mm

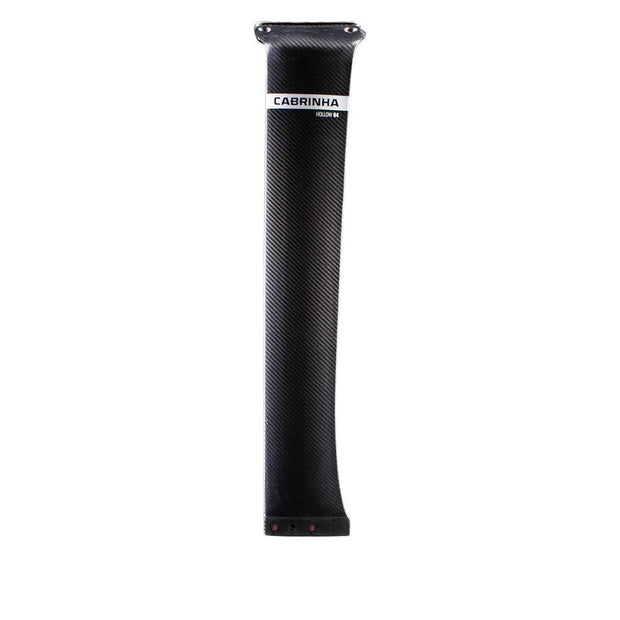

The all-new Hollow Mast system is yet another example of the state of the art foil program from Cab Design Works. It nods to the critical & complete design approach of the team to view every foil component individually with a view to improve stiffness across the entire platform. It implements a bladder molded construction with strategic layering of carbon as far to the outside as possible. This culminates in our stiffest ever mast to front wing connection. This reduction in flex eliminates any lag in the turn and transfers energy while pumping seamlessly through to the front wing.

Design Profile

• Superior Torsional and bend rigidity. Low weight and minimum drag.

Features

• Optimized airfoil for low drag to stiffness ratio
• TE scallop for improved turning and efficiency
• Integrated high modulus mounting plate
• Bladder molded, hollow mast construction for superior skin compression, providing ultimate rigidity
• Premium high modulus prepreg carbon fiber construction
• Barrel Nut compatible(x-series MkII and H-series MKII)
• Tapered Fit

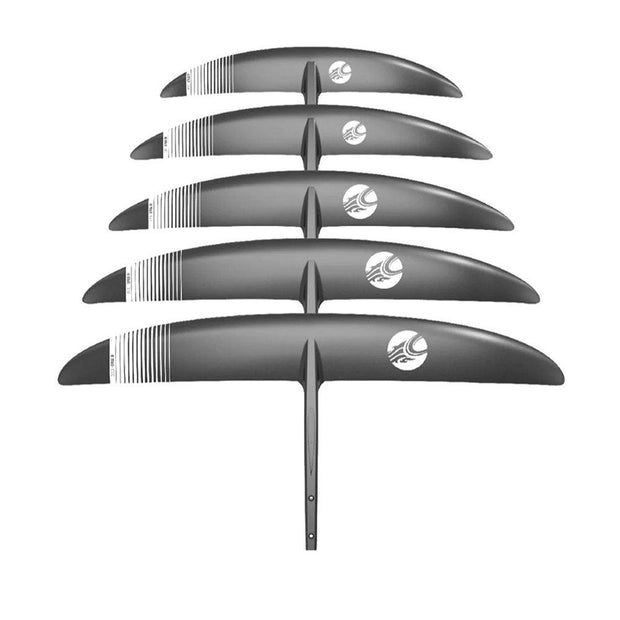

Just when you thought a product couldn’t get better, the new H-Series MkII pushes into the future of foil design and sets a new benchmark for efficiency and performance. The design team have implemented new technology learnt from the collaboration with Sintef. Water testing in the biggest tank in Europe has refined the H-series tip shape to allow the tips to breach and re-enter without cavitation. This allows more progressive riding and radical turns, be it with a kite, wing or prone. The new leaner profile now boasts an increased speed range which helps entry into freestyle tricks or on the race field. It seamlessly pairs with any of Cabrinha’s V-series stabs and is part of the modular Cab Fusion system.

Design Profile

• High aspect ratio, swept outline, Ultra lean efficient profile, moderate anhedral with flared tips.

Wing Features

• Ultra Efficient
• Design Ultra
• Lean Profile
• Refined Tip Shape.
• Tapered Fit
• Increased Torsional Stiffness
• High Aspect Ratio
• Barrel Nut Secure Connection
• Pre Preg Carbon Construction
• Modular Design to work with Cab Fusion Products

Tech Specs

• H700- 700cm², WS 815, AR 9.49, Chord 120mm
• H850- 850cm², WS 900, AR 9.53 Chord 130mm
• H1050- 1050cm², WS 1000, AR 9.52, Chord 140mm
• H1300 - 1300c m ², WS 1090, AR 9.14, Chord 150mm

Set includes: Wing cover, 2 x m6x30mm, 1 x m6x15mm, m6 barrel nut, screws.

Just when you thought a product couldn’t get better, the new H-Series MkII pushes into the future of foil design and sets a new benchmark for efficiency and performance. The design team have implemented new technology learnt from the collaboration with Sintef. Water testing in the biggest tank in Europe has refined the H-series tip shape to allow the tips to breach and re-enter without cavitation. This allows more progressive riding and radical turns, be it with a kite, wing or prone. The new leaner profile now boasts an increased speed range which helps entry into freestyle tricks or on the race field. It seamlessly pairs with any of Cabrinha’s V-series stabs and is part of the modular Cab Fusion system.

The Fusion H-Series Kits come with everything you need, you just need to add your mast of choice.

(Masts sold separately)

Included in Kit

• Wing
• V-Series 180 Stabiliser
• Medium Alloy Fusion Fuselage
• Track Nut Train X2
• Screw Set Foam Core Boards

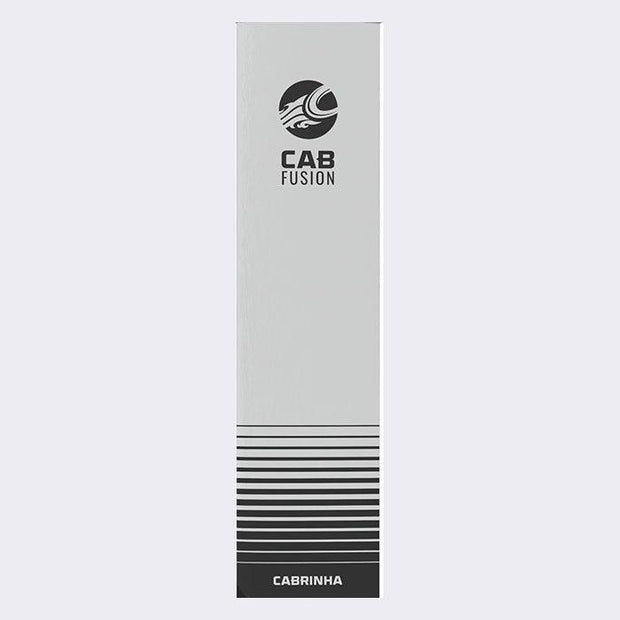

FUSION HYBRID BASE KIT

HIGH PERFORMANCE - DURABILITY

Set includes: Mast, rear fuselage, travel bag, 8pcs m6 ss316 torx ti coated screws and torx tool. Front and Rear Wings are SOLD SEPERATELY

Sizes: 70 / 90 CM MAST

The all new Fusion ecosystem sets a new benchmark in Cabrinha's foil design & manufacturing capabilities. Performance & function is at the heart of the design process.

Each Individual part has been redesigned on both component and connection level with an option to interchange any part in the system. This effortlessly simple system puts complete customization in your hands and the new X:Series Wing options will open the door to progression on whatever craft you choose to use them with. We proudly invite you to build your dream ride...

The Fusion Hybrid is an efficient blend of premium components that result an incredibly rigid & hydrodynamic structure. It seamlessly integrates into all 9cm industry standard foil boxes

The redesigned fuselage connection platform allows the mast to tightly lock into place to withstand the vertical and horizontal forces involved in all foil disciplines.

DESIGN PROFILE

Durability, longevity and unmatched stiffness in an alloy setup.

MAST FEATURES

• Fixed top plate with m8 slots for easy mounting
• 3-screw connection for superior rigidity
• Aircraft grade extruded, anodized 6061-T6 aluminum
• Precision tapered fuse-to-mast connection for optimal rigidity
• Helicoil inserts minimizes corrosion and provides long lasting durability
• Water tight hollow design for optimal strength to weight ratio

FUSELAGE FEATURES

• Precision CNC machined aircraft grade, anodized 6061-T6 aluminum
• Helicoil inserts minimizes corrosion and provides long lasting durability
• Interchangeable rear fuselage for optimal performance and easy travel
• Sold with 343mm fuselage for superior maneuverability
• Sold as accessory: 416mm fuselage for a perfect balance of stability and ease of use
• Recessed stabilizer mounting surface for minimal drag
