Wing Foiling

HA 1125... TAKING PERFORMANCE, SPEED AND GLIDE TO THE NEXT LEVEL! Performance, speed and glide have been taken to the next level with the High Aspect 1125. It was developed with key design input from Pete Burling, helmsman of Team New Zealand’s Americas Cup yacht (Current AC holders) and tested by legendary sailor, Jimmy Spithill. Pete, Jimmy and Armie became friends as foiling united their search and passion for ultimate performance and glide on downwind runs. The mad scientist and these high-performance sailing gurus have collaborated to create something the likes of which has not seen before outside the Americas Cup! At 9.8:1 it’s a true High Aspect ratio foil wing that sets the standard for glide performance, while retaining enough handling that it can be turned easily, making for an exhilarating ride. Downwind aficionados requiring max glide performance will want to get their hands on this wing simply because it is next level! In small surf on an 85cm mast or longer, the HS1125 can be ridden to good effect, the turning radius is surprisingly good for is high aspect ratio. The sleek, inflected tips help prevent ventilation even if a tip breaches. It’s next level pump and glide make it easy to double dip! For experienced wingers there is no comparison. It makes tacking fun and easy as the glide gives you so much time to complete maneuvers like 360’s. Combine this with amazing upwind angles and outrageous downwind glide, as well as freakish light wind performance and the riding it just never stops! Construction Construction is based around a high-density foam core, which is wrapped with 100% IM and High Modulus Carbon. The main wings are shaped and refined for maximum stability and predictability at all speeds The foil sections have been carefully designed by one of the world’s foremost sport wing designers.

Dimensions Area: 1125 cm2 Wingspan: 1050 mm Weight: 955 grams Aspect Ratio: 9.8

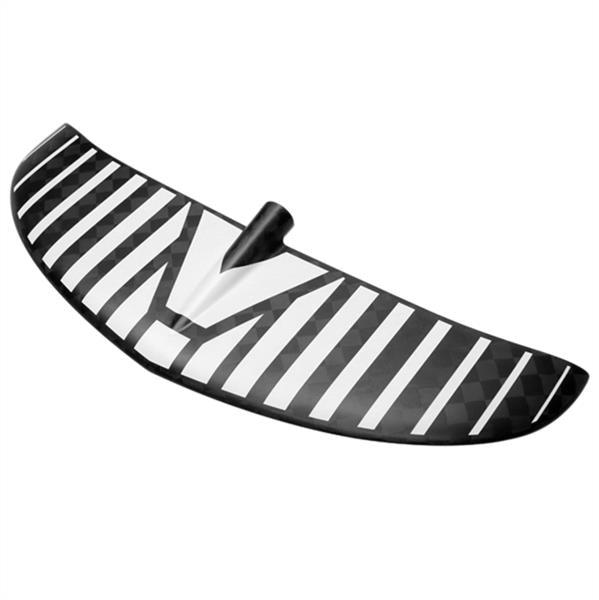

The Armstrong HS High Speed Foil kits are super stable, responsive and have great glide. It is the foil of choice for foilboarders looking for fast carving turns. HS kits are the next step for progressive foilers wanting to take their riding to the next level.

HS1550 Front Wing, HS232 Rear Wing, 72cm mast, TC60 Fuselage

HS1850 FOIL KIT

HS1850 Front Wing, HS232 Rear Wing, 72cm mast, TC60 Fuselage

The Armstrong Carving Freeride Foil Kits ARE DESIGNED TO GET YOU UP AND FLYING ON THE FOIL EASILY. EXTREMELY STABLE YET RIPS TURNS RAIL TO RAIL LIKE A DREAM. IF YOU WANT CARVABILITY AND ULTIMATE STABILITY, THEN LOOK NO FURTHER

The Sky SUP is Fanatic's 100% dedicated foil SUP designed maximise your fun – even in tiny waves - and to give you the longest rides of your life! Everything about the compact Sky SUP has been optimised to make it as easy as possible to catch waves. The compact dimensions, thick bevelled rails and channel bottom give stability and allow it to paddle straight and free; while the recessed deck and stance give great leverage and control over the foil. This year we boosted the performance with higher rocker, refined outline with narrower nose, and added a step tail to reduce drag when riding steeper waves. All sizes are also ideal for Wing Foiling.
6'3 x 27" 106L
6'7 x 28.5" 125L
6'11 x 30" 142L

Axis Foil Package

Axis foils leave you spolied for choice with all their options so we made it easy for you and put our best selling prone surf foil, SUP Foil and Wing foil combo together for you. This suits most 75-90kg riders.

The Axis Surf Foil Package includes: 76 front wing, 68cm 19mm mast, 390 rear wing, Short fuselage, 19mm plate mount, 19mm doodad and hardware. Add a tube of Tefgel if you need some Antiseize.

The Axis SUP Foil Package for lighter people (60-78kg) includes: 91 front wing, 75cm 19mm mast, 390 rear wing, Short fuselage, 19mm plate mount, 19mm doodad and hardware. Add a tube of Tefgel if you need some Antiseize

The Axis SUP Foil Package for bigger people (79-100kg) includes: The latest 105 front wing, 75cm 19mm mast, 390 rear wing, Short black fuselage, 19mm plate mount, 19mm doodad and hardware. Add a tube of Tefgel if you need some Antiseize

The Axis Wing Foil Package includes: The latest 105 front wing, 75cm 19mm mast, 390 rear wing, Short black fuselage, 19mm plate mount, 19mm doodad and hardware. Add a tube of Tefgel if you need some Antiseize

The Fanatic Sky Wing foilboard is their dedicated board range for Wing Foiling. Perfectly bridging the gap between Fanatic's Sky SUP and Sky Surf ranges, these shapes are ultra-compact and loaded with volume for an easy start and maximum manoeuvrability in flight mode. Everything about the Sky Wing boards has been optimised for Wing Foiling. The compact shapes are split in two directions: The two smaller models have their focus from freeride to waves, with a curvier rocker line, forgiving bevelled rails and deep double concaves creating a flat section for early going and smooth touch downs at the same time. The larger 5’4” is focussed on the earliest take off possible with minimal board size. The flat rocker with sharp release edges in the tail cater for maximum glide needed for a quick flight in light winds. Once you’ve learned your first steps into this fascinating new discipline – the Sky Wing is exactly what you want! Much more compact than a SUP Foil board, yet still easy enough to start and get up and out of the water.

4'8 x 22" 55L

5'0 x 24" 75L

5'4 x 26" 95L

5'8 x 28" 110L

6'0 x 30" 130L

Wing FOIL SUNS BOARDS

SUNS uses a hybrid glass compound in its construction. This makes them very strong and resistant boards at a very reasonable price.

FEATURES

- Design: Clean outline, raised nose, diamond tail
- Bottom: Flat (Concave tail)
- Roquer: Relatively flat with a kick in the nose
- Rails: BISELATED 45
- Fins: FOIL (2 SLOTS)
- Objective: To plane with the foil as soon as possible
- Wave type: Soft
- Practice level: Beginner to Professional

4'8 x 22" 51.4L

5'0 x 25.5" 74.7L

5'4 x 27" 95.6L

5'8 x 28" 109.9L

6'0 x 29.5" 129.7L

The Awesome new Starboard Wave surfing foils with easy quick lock assembley and this includes the tuttle and plate style fitting.

V6 Aluminium Mast

For absolute control and surfing performance, the 6th generation extra-hollow aluminum mast makes it lighter than ever. The triple beam stringer and wide chord makes it the stiffest mast on the market, laterally and torsionally.

Quick Lock

1. Insert the wing.

2. Lock the Wing by inserting the supplied Torx key and turning the pressure-bolt clockwise. This expands the fuselage’s male insert which locks the wing in place

3. Repeat for the tail wing.

4. Go foiling

Wave 1700

Front Wing Span: 80cm | 31.5"

Front Wing Area: 1700cm2 | 263 sq in

Tail Wing Span: 42cm | 16.5"

Tail Wing Area: 270cm2 | 42 sq in

Total Mast Length: 72cm | 28"

Fuselage length: 67cm | 26.3"

Wave 1300

Front Wing Span: 70cm | 27.5"

Front Wing Area: 1300cm2 | 201 sq in

Tail Wing Span: 42cm | 16.5"

Tail Wing Area: 270cm2 | 42 sq in

Total Mast Length: 72cm | 28"

Fuselage length: 67cm | 26.3"
What's in the Box?

Front Wing: Wave 1700 or 1300

Tail Wing: Wave 270

Mast: V6 Aluminium 65cm + 67mm Top Plate (total length 72cm/28”)

Fuselage: Quick Lock 36 tail piece + Quick Lock 36 Front piece

Other: Torx bolt set + Torx Key + M6 Lightweight Top Plate Mounting Bolts

Ozone Wasp V2

Wing Assisted Surf/Snow/Skate Propulsion• Hand held Wing for water, land or snow sports

• Lightweight inflatable design
• Simple to set up and use
• Stable with efficient power

The Ozone WASP V2…the fresh and exciting way of being driven by the elements, it’s a whole load of fun across a wide range of disciplines! Perfect for anything that rolls, slides, planes or glides. Following on from the very successful WASP V1, the second-generation design has been extensively reworked offering even more power, control and comfort. It’s lightweight, simple to set up, easy to use and offers amazing all-round performance whether you are freeride cruising, wave riding, boosting air tricks, down winding or just starting out.

Features:

• Exceptional Ozone Factory construction
• Designed with OZ-CAD
• Teijin TechnoForce Triple Ripstop canopy & Teijin Triple Ripstop dacron
• Internal reinforcements
• Double Stitched Folded Seams
• Load Distribution Panels
• Direct Connect Strut
• Reinforced Leading Edge and Strut
• Reinforced Trailing Edge
• Low Profile Aerodynamic Scuff Pads
• Unique bladder construction
• Fast Flow Inflate/Deflate Valves
• Ergonomic Power Handles
• Streamline De-power Handle
• Swivel Leash Line with Waist Strap
• Harness Line Connection Points
• Easy View Windows
• Wing Technical Bag

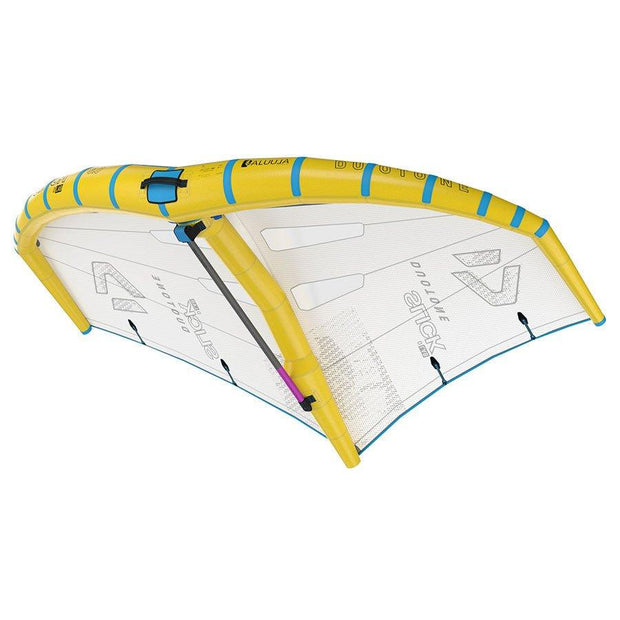

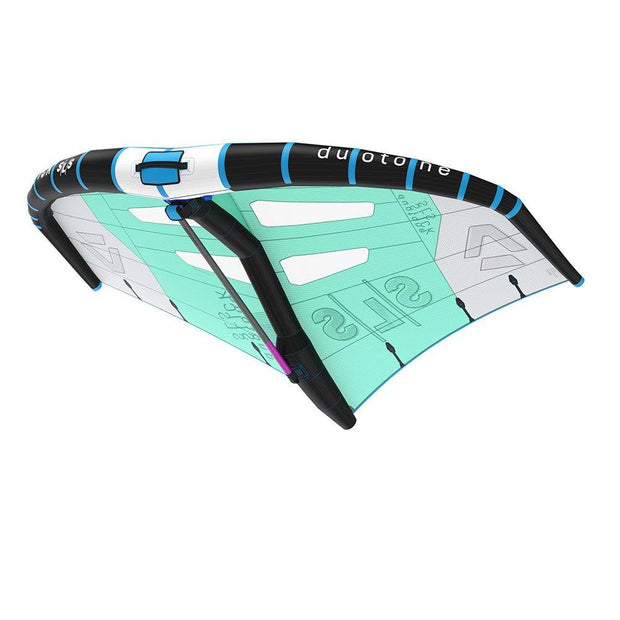

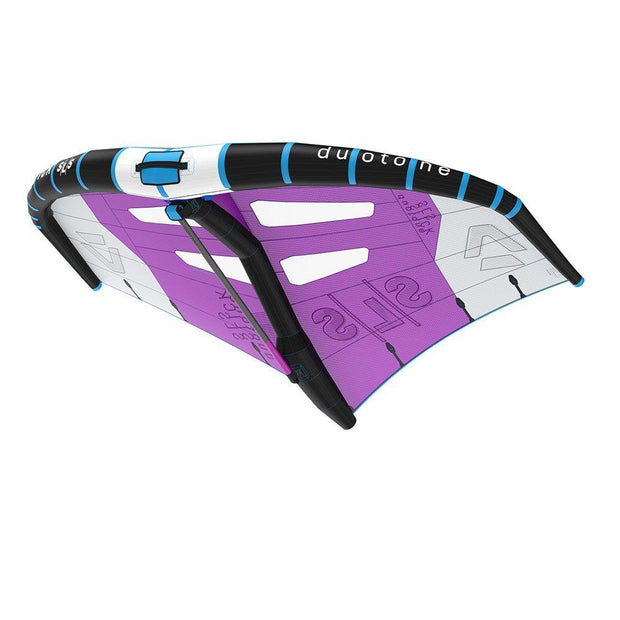

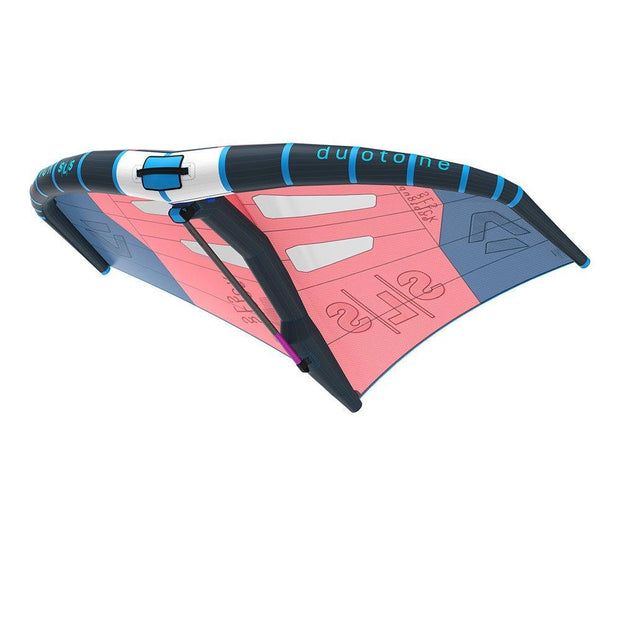

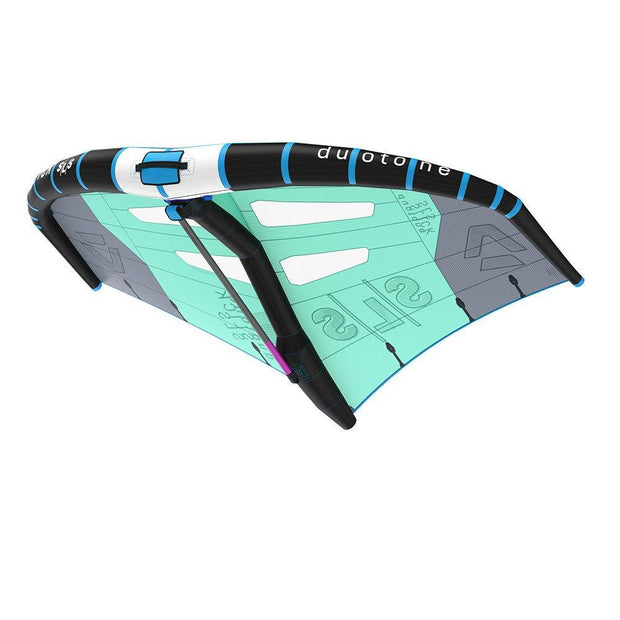

The Duotone Slick Wing Has arrived in limited numbers with more coming every few weeks!

The all-new Duotone Slick Wing is designed around the Mini Boom concept, this offers some unique advantages over other wings on the market. This system gives you all the control of a boom, along with all the benefits of a centre strut. You get improved control over the profile and luffing stability, plus a much more integrated connection to the wing itself through the Mini Boom. You can choose between aluminium or carbon booms, and one size fits all the wings. Dihedral angles on wings are critical, the team spent a long time working out the best angle to offer the maximum stability when riding using the front handle. The canopy tension has been tuned to offer the maximum power with an absolute minimum of flutter. The window shape has also been refined to provide unrivalled visibility without making it larger than it needs to be. The Slick is our latest project, and many riders will be impressed by the performance advantages, but why should you choose the Slick over the Echo or the Unit? The Slick is the versatile all-rounder in the range, being the most innovative and most advanced design out there. It is perfect for beginners and experts alike and is the go-to wing for most riders. If you want a wing that can do it all, is forgiving and easy to fly, while being packed with the latest technology and a perfect blend between simple and elaborate, the Slick is the ideal choice for you.

DUE TO THE INTUITIVE HAND POSITIONING, THE HANDLING OF THE WING IS SUPER EASY. IT OFFERS A VERY NEUTRAL DRIFT AND PLENTY OF DEPOWER.

THE STEERING/HANDLING OF THE SLICK IS VERY DIRECT AND THE POWER DELIVERY VERY EFFICIENT, WITHOUT NEEDING A LOT OF STRENGTH.

COMPARED TO PREVIOUS MODELS, THE STABILITY AS WELL AS THE UPWIND ABILITY ARE IMPROVED.

THE MINI BOOM CONNECTING TO THE CENTRE STRUT IS OFFERING A VERY EASY HANDLING AND FITS TO ALL SIZES and is availaible in alloy or carbon

THE OVERALL WING-SPAN IS REDUCED TO ACHIEVE AN EVEN EASIER HANDLING OF THE SLICK.

THE UPDATED WINDOW GEOMETRY NOW GUARANTEES BETTER VISIBILITY IN ALL SORTS OF RIDING SITUATIONS.

FROM THE FIRST PROTOTYPES TO THE FINAL PRODUCTION MODEL, DEVELOPING THE A-WING HAS BEEN A TOTAL BLAST!

Each step of the development process we were searching for the ideal balance between power and feel while reducing leading edge flex to a minimum.

Powerful…
The A Wing is powerful! This is primarily because the aerofoil section has been carefully developed so meter for meter the A-Wing is one of the most powerful wings on the market.

Solid…
The solid airframe of the A-Wing is the second ingredient to power and performance.

Balanced…
We refined the A-Wing design to be well balanced in a wide range of conditions. It is strong in terms of construction and durability but as light as possible in design for that perfect balance.

Construction...

• The leading edge and strut have Aramid reinforced cloth on all high load and stress points.
• Internal tape reinforces all seams on the leading edge and strut.
• Double layer of Dacron and Aramid cloth reinforces the strut to leading edge connection.
• High volume inflate and deflate valves make setup and pack down a breeze. The leading edge and the strut, inflate and deflate separately.

Materials...

• Leading edge and struts... Dimension Polyant Dacron (Germany)
• Sail... Teijin T9669 D3 (Japan)

Package...

The A-Wing comes complete with Carry Bag, Wrist Leash, Repair kit, Manual and in three optimized sizes, 3.5m 4.5m and 5.5m.

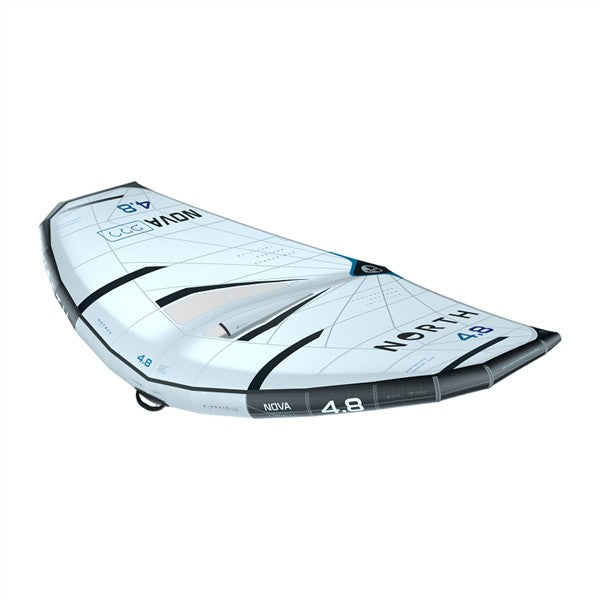

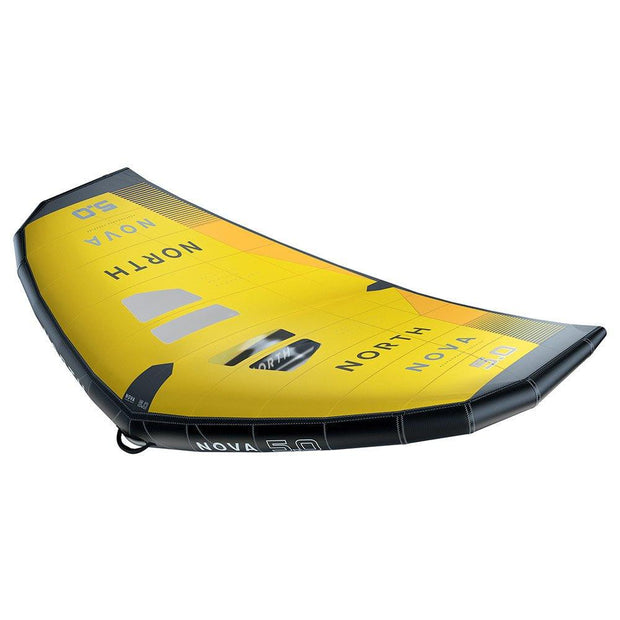

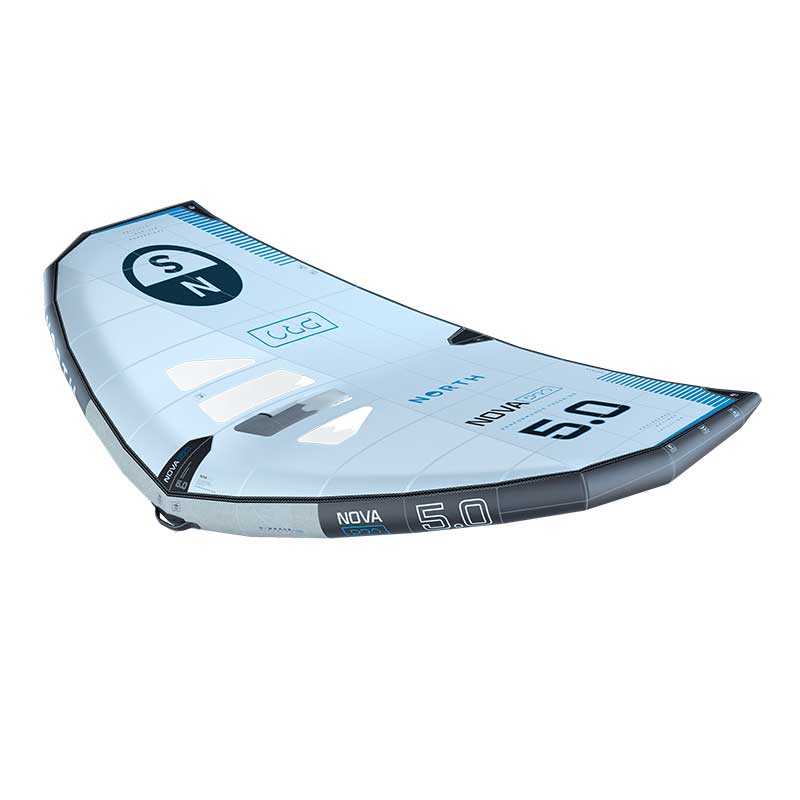

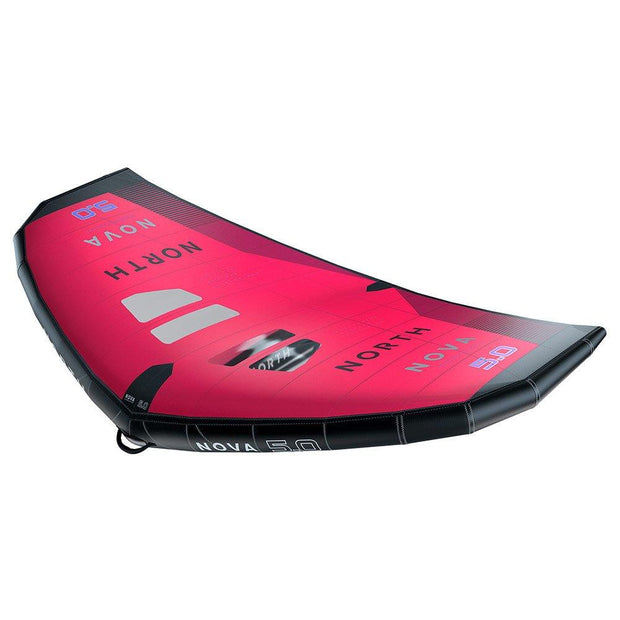

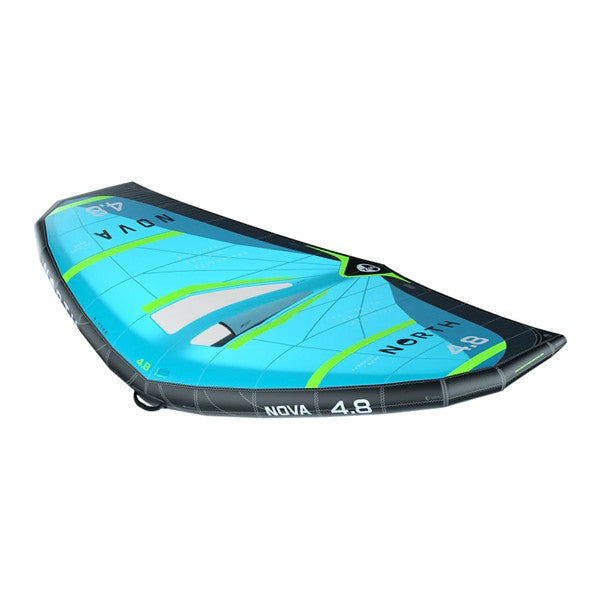

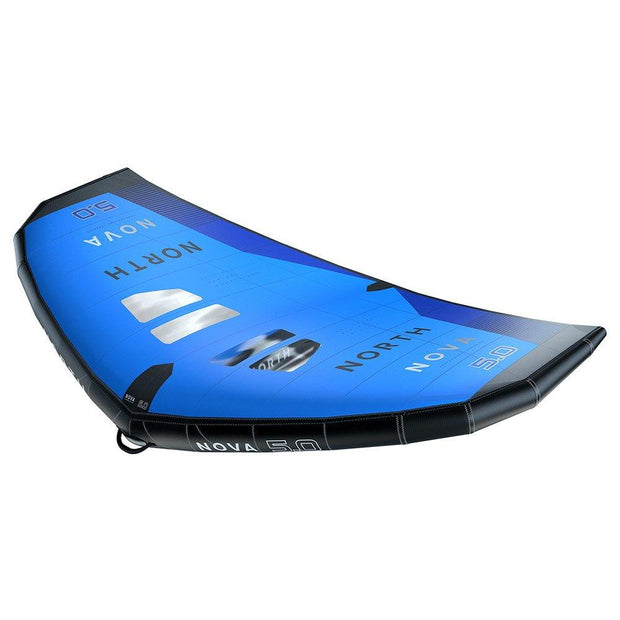

The North Nova Foil Wing Ding.

Maximum performance, minimum effort. No strings attached. Balanced and reactive, the Nova Wing generates more forward drive and upwind performance than anything you’ve ever ridden. At the heart of the Nova design is a super-stiff geometry for power and efficiency, enabling instant take-offs and a massive wind range. Intuitive transitions. Comfortable ergonomic handling. We’ve carefully positioned everything, from the XS Litevision panels to the low-profile handles, in the best place to trim the wing and make transitions safer and more intuitive. The tow-friendly wing shape with sweep and dihedral also helps keep it tracking when towing behind you on a wave.

Whether your focus is on the flow of riding open ocean waves, carving or stomping out tricks, the Nova Wing will help you make the most your local conditions.

Load up. Pump up. Ride longer.

We have a few B stock masts with a paint chip or two (hardly noticeable). Save $$$.

Composite structure, thinner at the bottom thicker at the top for chord progression. Snappier feel in carbon verses aluminium.

Rarely has a water sport come along and caused such a stir so quickly. Wing foiling is an incredible bridge between kiting, windsurfing and surf foiling. It appeals to all new water sports enthusiasts because of its simplicity, quick learning curve, location suitability, and safety

Our WR model has been a strong contender on the market since the beginning. The new WR Model III has been redesigned and optimized for even more fun and performance. Our design process has been focused on stability and ease of use, paired with a stiffness allowing for comfortable and efficient rides.

• The shape and profile of the WR have been optimized for better stability and refined power.
• The canopy is naturally tensioned for a perfect profile definition at all times. This creates a very direct response to input, with no flutter when sheeting out and unmatched stability when neutrally flown while riding a wave.
• The long semi-rigid handles have been improved for maximum maneuverability and comfort. Letting you easily move your hands back and forth without having to let go of a handle to grasp the next.
• New triple ripstop fabric and kevlar seam reinforcements provide greater profile support, greater durability, and longevity.
• We are now offering a new size of 4.5m to the range to suit all conditions and all riders.

These new upgrades translate into a significant performance improvement. Thanks to its amazing stability and forward drive, the new WR will take you from your first hesitant wing riding moments to the most advanced rides; be it wave riding, downwind cruising, jumping, speed runs, it adapts to whatever radical variation your imagination can take it.

The WR III revolutionize your ride.

The Duotone Echo Wind wing has huge improvements in control, wind range and speed. Available in 2.6m, 3.3m, 4m, 5, 6m and 7m sizes. This is Wing only so be sure to add a Duotone Wind Wing boom, pump and a leash.

The Armstrong HEX Fuselage is a ground breaking work of art in terms of engineering and design.

The fuselage has a solid Titanium core running throughout its length. The core is then shrouded in 5mm solid wall Carbon tube.The multi wing HEX fitting for the mast and front wing gives 360 degree surface contact, maximising the load distributing area.

This unique fuselage construction easily handles the highly leveraged opposing flex loads as the mast and wings are directly keyed into the Titanium core, taking your ride to the next level.

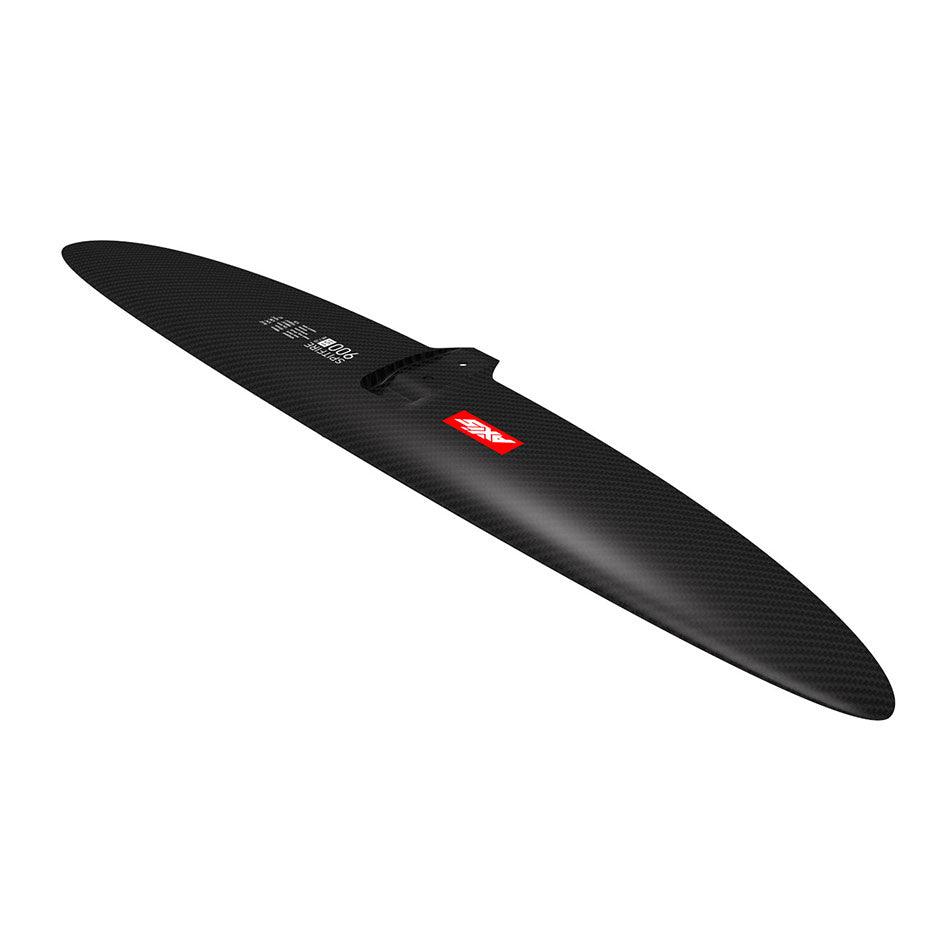

The Axis Surf Foil front and rear carbon wings are available individually to create a quiver of your foil options.
Price is for 1 wing only.

HPS Wings

The High Performance Speed (HPS) wings are FAST. Designed for the ultimate in performance, but yet still usable by most levels of riders. Since the HPS wings use their own foil section with less camper and narrower chord, we developed a special fuselage that will accommodate all the HPS and future performance front wings.

The HPS wings are the ideal performance wings for WINGING and DOWNWIND. High level riders they also SUP, PRONE, WAKE and WINDSURF foil the bigger sizes, while the smaller sizes are perfect for TOW, freestyle WINGING and KITE foiling.

This is a new generation of front wings made for FAST performance riding, while it's still stable and predictable with enormous amount of glide and great turning.

Pump and Glide Wings

The AXIS PNG wings are designed to be easy and early to lift for their size.

They have tons of control, and feel comfortable for most levels of riding. Our Glide wings pump unreal, and glide effortlessly and endlessly. And they are fast wings, but their focus is not to be the fastest wing on the market. But instead, to be the easiest high aspect wing that almost everyone can ride, and can improve their level of riding right away.

Surf Performance wings

The Surf Performance (SP) wings were introduced in 2020 and have been the favorites among wave riders who are looking for smooth, side to side loose turning.

BSC Wings

CF300 TAIL WING

The Duotone Mini Boom Silver is simply inserted into the webbing on the back of the strut and then pushed into the connection for the boom front, which is additionally secured by two retainer Velcro straps. Installing the Mini Boom only takes a few seconds and the inflation pressure guarantees a solid and intuitive handling sensation.

The Mini Boom Platinum Series is the choice of our team riders for the lightest weight and best performance. The carbon Mini Boom is simply inserted into the webbing on the back of the strut and then pushed into the connection for the boom front, which is additionally secured by two retainer Velcro straps. Installing the Mini Boom only takes a few seconds and the inflation pressure guarantees a solid and intuitive handling sensation.

Availible in Silver with alloy construction or Platinum made from cabon

Oh Baby! Push 3 litres of air with every stroke. Get that kite on the water faster with this big pump.

The Duotone Extension Kitebag. Too lazy to pump? Keep the struts of your kite inflated with this handy bag!

Also great for Wing Foils! Can fit up to 2 wing dings per bag!

M 10-14M

L 15-18M

The Downwinder coil was developed working to the specs reqired by our local Team Guys. We found some wanted a compact 2.1m coil only.

Duotone wing wrist leash perfect for wind wings

Medium is 4'0

Large is 5'5

Cabrinha FUSION FOIL KIT

HIGH PERFORMANCE - LIGHT WEIGHT

Select your construction then wings

Set includes: Mast, rear fuselage, travel bag, 5pcs m6 ss316 torx ti coated screws and torx tool. Wings and Wing covers

Sizes: 70 CM / 80CM

The all new Cabrinha Fusion foil system sets a new benchmark in Cabrinha's foil design & manufacturing capabilities. Performance & function is at the heart of the design process.

Each Individual part has been redesigned on both component and connection level with an option to interchange any part in the system. This effortlessly simple system puts complete customization in your hands and the new X:Series Wing options will open the door to progression on whatever craft you choose to use them with.

The Fusion Carbon kit puts performance above all else. The EPS, prepreg carbon construction gives insane stiffness in a lightweight package. It seamlessly integrates into all 9cm industry standard foil boxes. The redesigned fuselage connection platform allows the mast to tightly lock into place to withstand the vertical and horizontal forces involved in all foil disciplines.

DESIGN PROFILE

Ultimate stiffness to weight ratio and minimum drag.

MAST FEATURES

• Integrated baseplate for superior stiffness and reduced weight
• I-beam full carbon pre-preg construction.
• EPS core for superior strength to weight ratio
• Precision tapered fuse-to-mast connection for optimal rigidity
• Tapered chord for reduced drag
• 3-screw connection with threaded brass inserts

FUSELAGE FEATURES

• EPS core for superior strength to weight ratio
• Full carbon prepreg construction
• ss316 m6 inserts
• Interchangeable rear fuselage for optimal performance and easy travel
• 343mm rear fuse for superior maneuverability
• recessed stabilizer mounting surface for minimal drag

Cabrinha FUSION HYBRID Foil Kits

Set includes: Mast, rear fuselage, travel bag, 8pcs m6 ss316 torx ti coated screws and torx tool. Front and Rear Wings with Wing Covers

Sizes: 70 / 90 CM MAST

The all new Fusion ecosystem sets a new benchmark in Cabrinha's foil design & manufacturing capabilities. Performance & function is at the heart of the design process.

Each Individual part has been redesigned on both component and connection level with an option to interchange any part in the system. This effortlessly simple system puts complete customization in your hands and the new X:Series Wing options will open the door to progression on whatever craft you choose to use them with. We proudly invite you to build your dream ride...

The Fusion Hybrid is an efficient blend of premium components that result an incredibly rigid & hydrodynamic structure. It seamlessly integrates into all 9cm industry standard foil boxes

The redesigned fuselage connection platform allows the mast to tightly lock into place to withstand the vertical and horizontal forces involved in all foil disciplines.

DESIGN PROFILE

Durability, longevity and unmatched stiffness in an alloy setup.

MAST FEATURES

• Fixed top plate with m8 slots for easy mounting
• 3-screw connection for superior rigidity
• Aircraft grade extruded, anodized 6061-T6 aluminum
• Precision tapered fuse-to-mast connection for optimal rigidity
• Helicoil inserts minimizes corrosion and provides long lasting durability
• Water tight hollow design for optimal strength to weight ratio

FUSELAGE FEATURES

• Precision CNC machined aircraft grade, anodized 6061-T6 aluminum
• Helicoil inserts minimizes corrosion and provides long lasting durability
• Interchangeable rear fuselage for optimal performance and easy travel
• Sold with 343mm fuselage for superior maneuverability
• Sold as accessory: 416mm fuselage for a perfect balance of stability and ease of use
• Recessed stabilizer mounting surface for minimal drag

FUSION X-SERIES WINGS

HIGH PERFORMANCE

Sizes: X950 / X1300 / X1600 / X1950

The best part of the last 5 years has been the rise in hybrid development and crossover technology amongst sports. No where is this more evident than in foil boarding. The hydrofoil has become the common denominator in all of the surf and wind sports today.

Therefore, it reasons that its important to have a hydro wing-set capable of crossing between sporting genres with flawless performance and capability. Enter the X Series™ wings from Cabrinha. The design of the X Series™ recognizes and exploits the most important features needed in all hydrofoiling genres. Lift, efficiency and control are the three pillars that drive the X Series’ high performance and buttery smooth ride.

Through a combination of outlines and wing profiles the X series delivers a smooth lift and stable flight with precise turning and control.

The X Series’ efficiency is enhanced by our all new Cab Fusion mast and fuselage ecosystem. The Cab Fusion is a redesign from the bottom up to remove any unwanted ‘play’ in the system while streaming the connection between the wings and the fuselage. The resulting increase in stiffness and reduction in drag puts the X Series wings into an all new class of hydrofoils.

The X Series comes in 4 sizes to cover an incredibly wide range of rider weights and uses. If you do more than one sport you'll be confident that your entire foil system will crossover with an astounding level of performance across genres.

DESIGN PROFILE

Swept LE, Straight TE, Lean draft forward profile, moderate anhedral.

WING FEATURES

• Loose and agile feel for superior maneuverability
• Optimal efficiency and lift
• Integrated fuselage with tapered fit
• Incredible torsional stiffness and minimum drag
• Full prepreg carbon construction
• EPS core for superior strength to weight ratio
• Moderate anhedral for a more efficient lift platform
• Draft forward profile for a forgiving ride and early predictable lift

TECH SPECS

• X950- 950cm^2, WS 630mm, AR 4.2, Vol 1.18L
• X1300- 1300cm^2, WS 780mm, AR 4.7, Vol 1.6L
• X1600- 1600cm^2 WS 900mm, AR 5.05, Vol 2L
• X1950- 1950 cm^2, WS 1000mm, AR 5.13, Vol 2.5L

Put your Takuma Kujira Foil together they way you want it. Choose your wings, Mast and fuselage construction and mast height.

Put your Axis Foil together the way you want it. Choose your front wing, rear wing, mast length, doodad to attach the alloy mast to the fuselage (not needed for carbon masts), fuselage size and mounting system.

SP (Surf Performance)

BSC (Broad Spectrum Carve)

HPS (High Performance Speed)

PNG (Pump and Glide)
