Surf Foilboarding

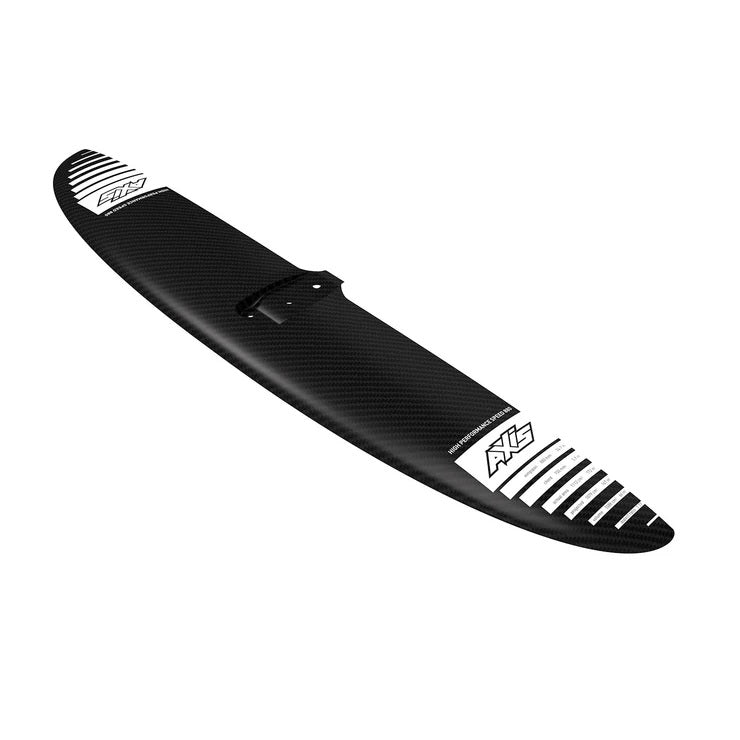

The Axis Surf Foil front and rear carbon wings are available individually to create a quiver of your foil options.
Price is for 1 wing only.

68cm WING Technical Data:
CHORD: 200mm
ACTUAL AREA 1120 square cm / 174 square inches
SPAN: 68 cm / 26.77 inches
PROJECTED AREA: 1048 square cm / 162

75cm WING Technical Data:
CHORD: 220mm
ACTUAL AREA 1359 square cm / 211 square inches
SPAN: 75 cm / 29.5 inches
PROJECTED AREA: 1272 square cm / 197

82cm Wing Technical Data:
CHORD: 222.7mm
ACTUAL AREA 1528 square cm / 236 square inches
SPAN: 82 cm / 32 inches
PROJECTED AREA: 1443 square cm / 223

900 WING Technical Data:
CHORD:
ACTUAL AREA 1277 square cm / 198 square inches
SPAN: 900 mm / 35.43 inches
PROJECTED AREA: 1184 square cm / 183

92cm WING Techincal Data:
CHORD: 250cm
ACTUAL AREA: 1852 square cm / 287 square inches
SPAN: 92 cm / 36 inches
PROJECTED AREA: 1816 square cm / 281

100cm Technical Data:
MAX CHORD: 160mm
ACTUAL AREA 1388 square cm / 215 square inches
SPAN: 1000 mm / 39.5 inches
PROJECTED AREA: 1310 square cm / 203

102cm WING Technical Data:
CHORD: 250cm
ACTUAL AREA: 2051 square cm / 318 square inches
SPAN: 102 cm / 40 inches
PROJECTED AREA: 2013 square cm / 312

Bolts for your Axis foil. There are surf and windsurf specific bolts for the different length mounts

A variety of size rear wings for different foil boarding applications

You need this to attach your Axis foil on a board. 3 styles available, Plate mount that uses 2 long boxes mounted in your board, Surf Tuttle box and Windsurf tuttle box. When in doubt just contact us for advice. The Tuttle mounts for windsurf and a Surf differ slightly in the spacing of the 2 bolt holes

Individual masts to suit Axis Foil

1650 WING + 70 MAST
The large 1650 Surf wing delivers a stable platform with very low drag to lift ratio and is paired with the 70cm Mast for endless carving. Pump with ease to connect multiple waves. A real crossover from Kite Foil to Foil Surf, SUP Foil, Wake Foil and Tow Foil Surf for all rider weights. Make use of the fully interchangeable Sonar Foil System to extend your playtime on the water. The Sonar Foil System can be mounted to any foil board with a 165x90mm bolt pattern.

The 2020 Fanatic Sky Surf – has also evolved to give you a massive boost in performance, even when riding the smallest waves or ocean swells. With its compact dimensions, generous volume and channelled bottom shape, it is direct to paddle and tracks easily, making catching waves easier than ever. A more curved ‘surfier’ outline with increased rocker and a pronounced kick-tail reduce drag further during take-offs, or when carving hard on steeper waves. The bevelled rails and pulled-in nose with deep double concaves makes touch-downs more neutral and forgiving.

4'8 x 20.5" 35L
5'2 x 21" 41L
5'11 x 22" 60L

4'8 x 21.5" 37L
5'0 x 22.5" 45L
5'4 x 24" 50L

Go Foil mast available in Tuttle mount or plate mount. Tuttle to Plate adapters are also available

Rear Go Foil wings are available in different sizes. Please note that a Rear Pedesta is needed to mount the flat and flip tip Tail Wing.

Mount it to your favourite board and voila! It is ready for a foil!

We recommend you get a professional that knows what they are doing to install it in your board.

https://youtu.be/i7PfoZW_Ivo


Optional length fuselage for the Axis Foil system.
Standard is 76cm
Short is 68cm
Ultra Short 62cm
Windsurf is windsurfing specific, placing the front wing much further ahead of the mast.

Used connect the Axis Fuselage to Axis Alloy mast. Select 16mm or 19mm depending on what thickness of mast you have

4'8 x 21.5" 37L
5'0 x 22.5" 45L
5'4 x 24" 50L

The latest prone foilboard shape from Sunova is the Larry Foiler in XXX balsa and the new TR3 wood construction. Great entry shape for good paddling glide with the slight round V and a good high volume blocky tail for that little push from the fave on chip in. a flat with concave edge deck has heaps of grip and is comfortable to paddle. The new TR3 construction give a much harder and more durable board than the previous balsa while being more environmentally sustainable yet still providing an ultra light weight board.

4'0" x 19" x 31.7L
4'6" x 20" x 35.1L

Wings for the Neilpryde Glide Surf Foil

Front wings span, Large: 86cm, Medium: 75cm and Small: 64cm.

Tail wing span, Large: 51cm / Tail wing span, Small: 40cm.

https://youtu.be/8k7A_LkeZNw

https://youtu.be/-0k53mzP_Ek

The Neilpryde RS Glide surf foil is super smooth in turns and easy to master. It makes foil boarding in even the smallest waves so fun you will be addicted.

The screws are Titanium plated Stainless Steel.  The Titanium is is for improved corrosion resistance compared to pure Stainless Steel screws, but they are stronger than our old pure Titanium screws, especially in the resistance to stripping the head.

The Torx head also improves the resistance to stripping the head.

It is still very important to use the grease supplied or Tef-Gel when assembling the aluminium foils.  We strongly encourage that the bolts are removed from fuselage when not in use (or, at very least, backed off ½ turn).

GLIDE Wings specs:

GLIDE WIND Front Wing = surface area 160 sqi, span 640mm

GLIDE SURF S Front Wing = surface area 160 sqi, span 640mm

GLIDE SURF M Front Wing = surface area 190 sqi, span 750mm

GLIDE SURF L Front Wing = surface area 225 sqi, span 860mm

GLIDE SURF Large set includes:

1 Mast 60

1 Surf Fuselage

1 Front Wing L

1 Tail Wing L

1 Tail Wing S

1 Surf Plate connection

    * this will be the only foil set delivered with both S and L tail wings, pricing is unchanged

GLIDE SURF Medium set includes:

1 Mast 60

1 Surf Fuselage

1 Front Wing M

1 Tail Wing S

1 Surf Plate connection

GLIDE SURF Small set includes:

1 Mast 60

1 Surf Fuselage

1 Front Wing S

1 Tail Wing S

1 Surf Plate connection

The Awesome new Starboard Wave surfing foils with easy quick lock assembley and this includes the tuttle and plate style fitting.

V6 Aluminium Mast

For absolute control and surfing performance, the 6th generation extra-hollow aluminum mast makes it lighter than ever. The triple beam stringer and wide chord makes it the stiffest mast on the market, laterally and torsionally.

Quick Lock

1. Insert the wing.

2. Lock the Wing by inserting the supplied Torx key and turning the pressure-bolt clockwise. This expands the fuselage’s male insert which locks the wing in place

3. Repeat for the tail wing.

4. Go foiling

Wave 1700

Front Wing Span: 80cm | 31.5"

Front Wing Area: 1700cm2 | 263 sq in

Tail Wing Span: 42cm | 16.5"

Tail Wing Area: 270cm2 | 42 sq in

Total Mast Length: 72cm | 28"

Fuselage length: 67cm | 26.3"

Wave 1300

Front Wing Span: 70cm | 27.5"

Front Wing Area: 1300cm2 | 201 sq in

Tail Wing Span: 42cm | 16.5"

Tail Wing Area: 270cm2 | 42 sq in

Total Mast Length: 72cm | 28"

Fuselage length: 67cm | 26.3"
What's in the Box?

Front Wing: Wave 1700 or 1300

Tail Wing: Wave 270

Mast: V6 Aluminium 65cm + 67mm Top Plate (total length 72cm/28”)

Fuselage: Quick Lock 36 tail piece + Quick Lock 36 Front piece

Other: Torx bolt set + Torx Key + M6 Lightweight Top Plate Mounting Bolts

Quicklock Wings for Starboard Foils

Put your Axis Foil together they way you want it. Choose your front wing, rear wing, mast length, Doodad to attach the alloy mast to fuselage (not needed for carbon mast), fuselage size and mounting system
